Dhafir Trading is engaged in the Distribution of Cable Terminating & Jointing Solutions up to 36kV. The comprehensive portfolio includes a finely tuned product range of cable connection systems in heat shrink for screened or unscreened polymeric cables as well as paper-insulated cables.

AHeat shrinks joint kits are suitable for joining Plastic & Rubber Insulated cables for up to 36kV. Cable joints play an essential role in the electrical and electronic systems of any home or industry. They connect the power cables and ensure the flow of continuous electric current through them.

FEATURES:

Pre-engineered range taking heat-shrinkable tubing incorporating precisely engineered impedance stress control. Universal joints are suitable for a wide range of connectors and cable sizes with no limitations on shelf life.

APPLICATION:

Suitable for polymeric, rubber and paper insulated MIND cables single and three core, armored and non-armored.

Cable Joints, Terminations & Accessories

Dhafir Group for General Trading is the Authorized Distributor of M/s. Tyco Electronics Raychem - Germany in Abu Dhabi for more than 35 years, and are offering a wide range of Cable Accessories engineered for the Energy industry.

M/s. TE Raychem from Germany, with its more than 60 years legacy, have been the pioneers in offering reliable and cost-effective products for the electrical power industry.

Our products are approved and in service at all major utilities such as ADDC, AADC, TRANSCO, ADNOC, DEWA, SEWA, Etihad WE etc. for decades.

We offer the below wide range of Cable Accessories;

HEAT SHRINK TYPE TERMINATION, JOINTS & ACCESSORIES
PLUGIN TYPE TERMINATION KITS
SEPARABLE SCREENED ELBOW TYPE TERMINATIONS
HIGH VOLTAGE CABLE ACCESSORIES
RAYSULATE INSULATION ENHANCEMENT SYSTEM
CABLE ACCESSORIES & TOOLS

1.1. Heat Shrink Type Termination, Joints & Accessories

M/s. Raychem, being the pioneers of Heat Shrink Technology, are offering the complete range of Cable Termination, Joints and accessories for Low voltage to 36KV Cables.

Our Heat Shrink Accessories include the below range of products;

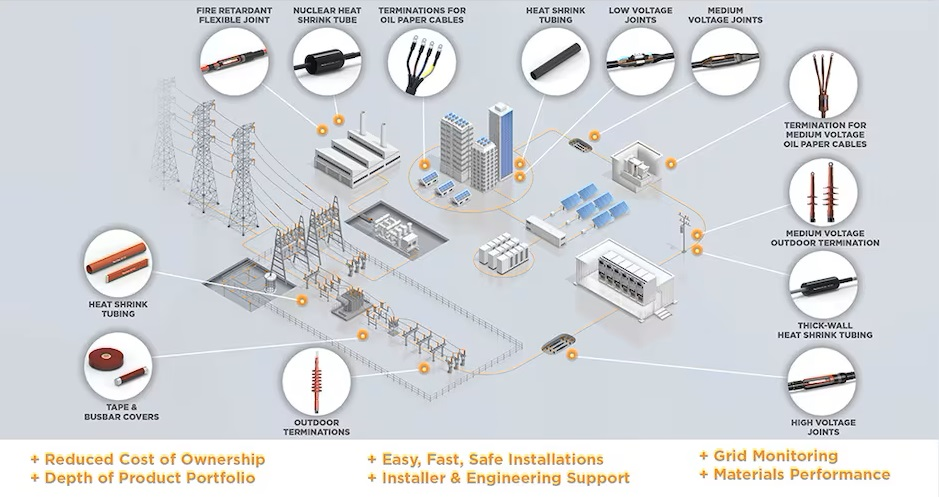

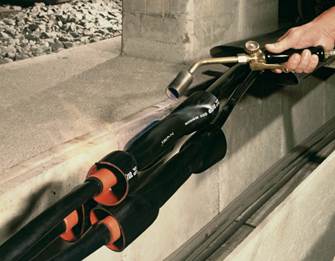

1.1.1. Termination Kits

EPKT Series heat shrink type terminations for polymeric and MIND paper insulated cables from 7.2 kV up to 36 kV (DOWNLOAD CATALOGUE)

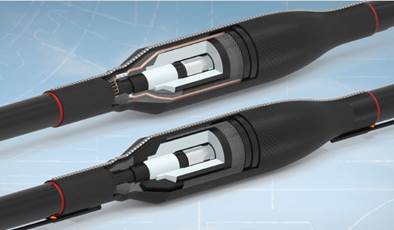

1.1.2. Joints

Raychem heat-shrinkable Cable Joints for screened plastic and rubber insulated cables up to 36 kV, with Crimp Type/ Mechanical Shear Bolt Connectors (DOWNLOAD CATALOGUE)

1.1.3. Wraparound Repair Sleeves

CRSM heat-shrinkable wraparound system for repairing of Outer- sheath damage of electrical cables (DOWNLOAD CATALOGUE)

1.1.4. Busbar Insulating Sleeves

BPTM heat-shrinkable Busbar insulation tubing - Voltage class 25 kV (DOWNLOAD CATALOGUE)

BBIT heat-shrinkable Busbar insulation tubing - Voltage class 36 kV (DOWNLOAD CATALOGUE)

1.1.5. Busbar Insulating Tapes

HVBT – Busbar Insulation Tape – Voltage Class 25kV

1.1.6. Medium Wall Insulating Sleeves

MWTM – Black Insulating Sleeves

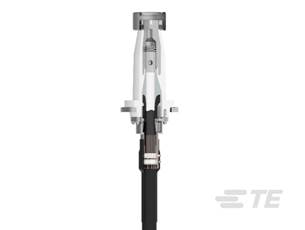

1.2. Plugin Type Termination Kits

TE Raychem Plug-In Terminations RPIT separable connectors are designed for both Aluminum or Copper conductors in accordance with IEC 60228 and are compatible with inner cone bushings Size 2 (800 A) and Size 3 (1250 A) as per EN 50180/EN 50181. TE’s Raychem RPIT are available for system voltages from 12 kV up to 52 kV for any type of cable and are compliant with CENELEC HD 629.1.S2:2006- A1:2008 (up to 42 kV) and IEC 60840 (52 kV)

(DOWNLOAD CATALOGUE)

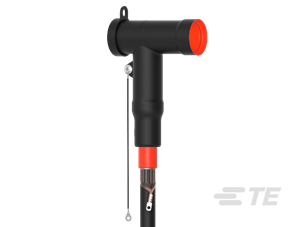

1.3. Separable Screened Elbow Type Terminations

We offer a wide range of Separable type connectors from Raychem (TE) to connect polymeric cables to Medium voltage GIS, Transformers, Ring Main Units or other equipments

RSSS/RSES Elbow/Straight Connectors – TYPE “A” Interface (Upto 24KV)

RSES/RSSS are designed to be used with Type “A” Bushing according to EN 50180/EN 50181 specified for 250A continuous current. The RSES and RSSS connectors are compliant with CENELEC HD 629.1 S2 02/2006+A1:2008. and tested for a system voltage up to 24 kV.

(DOWNLOAD CATALOGUE)

RSES Elbow Connectors – TYPE “B” Interface (Upto 36KV)

RSES are designed to be used with Type “B” Bushing according to EN 50180/EN 50181 specified for 400 A continuous current. The RSES connectors are compliant with CENELEC HD 629.1 S2 02/2006+A1:2008 and suitable for a system voltage up to 36kV.

(DOWNLOAD CATALOGUE)

RSTI-58XX / RSTI-CC-58XX Elbow Connectors – TYPE”C” Interface (Upto 24KV)

RSTI-58 are designed to be used with Type “C” Bushing according to EN50180/EN50181 specified for 630/1250A up to 24 kV.

(DOWNLOAD CATALOGUE)

RSTI-CC-58 Separable Coupling connectors are designed to mate with the Rear-End of the Raychem RSTI-58 Connectors, for connecting multiple Runs of cable on the same bushing.

(DOWNLOAD CATALOGUE)

RSTI-68XX / RSTI-CC-68XX Elbow Connectors – TYPE”C” Interface (Upto 42KV)

RSTI-68 are designed to be used with CENELEC bushings Type C1=630 A and C2=1250 A, specified up to 42 kV

(DOWNLOAD CATALOGUE)

RSTI-CC-68 Separable Coupling connectors are designed to mate with the Rear-End of the Raychem RSTI-68 Connectors, for connecting multiple Runs of cable on the same bushing.

(DOWNLOAD CATALOGUE)

RSTI-X9XX / RSTI-CC-X9XX Elbow Connectors – TYPE”C” Interface (For Large Cross-Section Cables Upto 42KV)

RSTI-X9 are designed to connect polymeric cables with Large Cross Section (400SQMM to 1000SQMM) to medium voltage GIS and other equipment using bushings type “C” (EN50180/EN50181) specified for 630/1250A up to 42 kV.

(DOWNLOAD CATALOGUE)

RSTI-CC-X9 Separable Coupling connectors are designed to mate with the Rear-End of the Raychem RSTI-X9 Connectors, for connecting multiple Runs of cable on the same bushing.

(DOWNLOAD CATALOGUE)

RSTI-68SA / RSTI-CC-68SA Separable Surge Arrester – TYPE”C” Interface (Upto 42KV)

Separable Type Surge Arresters are designed for direct connection onto outer cone bushings in accordance to EN50180 or EN50181 with interface type “C” or for parallel connection mating to the rear entry of the base screened connector system RSTI designed for system voltage up to 41 kV.

(DOWNLOAD CATALOGUE)

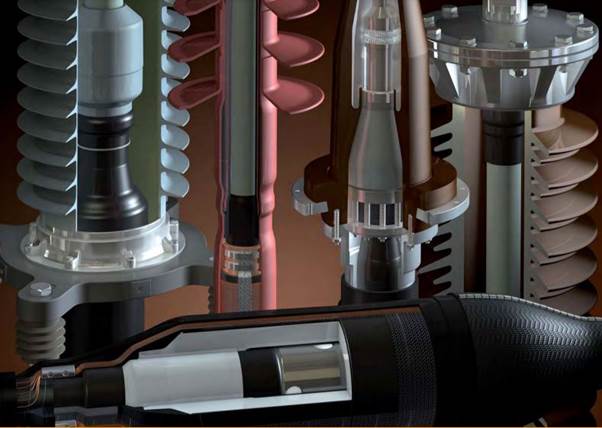

1.4. HV CABLE JOINTS & TERMINATIONS UPTO 145KV

M/s. TE Raychem are offering High voltage Cable Accessories along with installation/supervision services. The major items include as below;

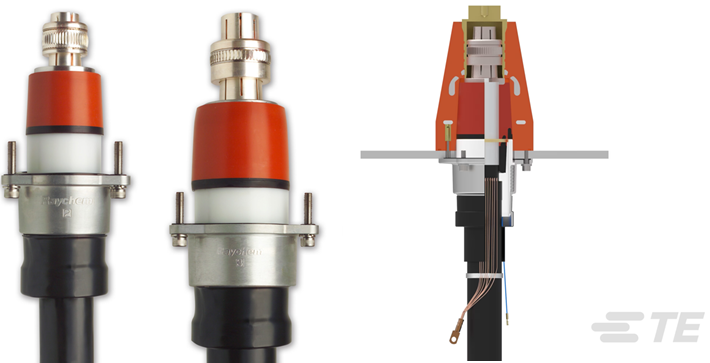

1.4.1 PHVS-145 PLUG-IN GIS-SIDE TERMINATIONS (UPTO 145KV)

High Voltage Dry Plug-in Type Switchgear termination (PHVS) is designed for voltage up to 145 kV and installed in cable entry housings of gas-insulated switchgear (GIS).

(DOWNLOAD CATALOGUE)

1.4.2 PHVT-145 PLUG-IN TRANSFORMER-SIDE TERMINATIONS (UPTO 145KV)

High Voltage Dry Plug-in Type Transformer termination (PHVT) is designed for voltage up to 145 kV and installed in the Transformer cable entry housings.

(DOWNLOAD CATALOGUE)

1.4.3 OHVT-145 OUTDOOR TYPE TERMINATIONS (UPTO 145KV)

High Voltage Outdoor Type terminations (OHVT) is designed for voltage up to 145 kV and can operate under severe environmental conditions.

(DOWNLOAD CATALOGUE)

1.4.4 EHVS-145 THREE PIECE JOINT FOR UPTO 145KV CABLES

Raychem High voltage three-piece joints with heat shrink re-jacketing, both in-line or shield break are designed for voltages up to 145 kV and to operate under severe environmental conditions. The EHVS is designed such that it is compatible with polymeric insulated cables independent of the manufacturer and can be adapted with respect to grounding required for various cable constructions.

(DOWNLOAD CATALOGUE)

1.4.5 LINK BOXES for Upto 400KV

Link Boxes are used for earthing and bonding cable sheaths of single core cables so that the induced voltages and circulating currents are eliminated or reduced. TE Connectivity’s Raychem link boxes have reliable design and the housing is made of stainless steel. The enclosure is water and dust tight type tested to fulfil the requirements of protection class IP68 for installations below ground

(DOWNLOAD CATALOGUE)

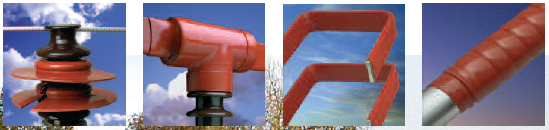

1.5. Raysulate Insulation Enhancement System

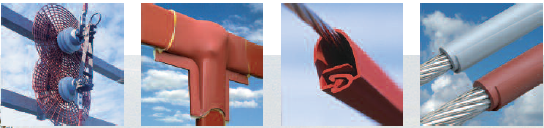

For over 30 years TE Raychem’s Raysulate products have been protecting substations and overhead distribution/transmission networks around the world by insulating vulnerable bare metalwork.

The Raychem Raysulate system of tubes, tapes, sheets, preformed covers and barriers provide a proven, cost- effective and easy-to-install retrofit solution to bird and animal outages.

(DOWNLOAD CATALOGUE)
